Danfoss Dual Pressure Control Auto/Auto

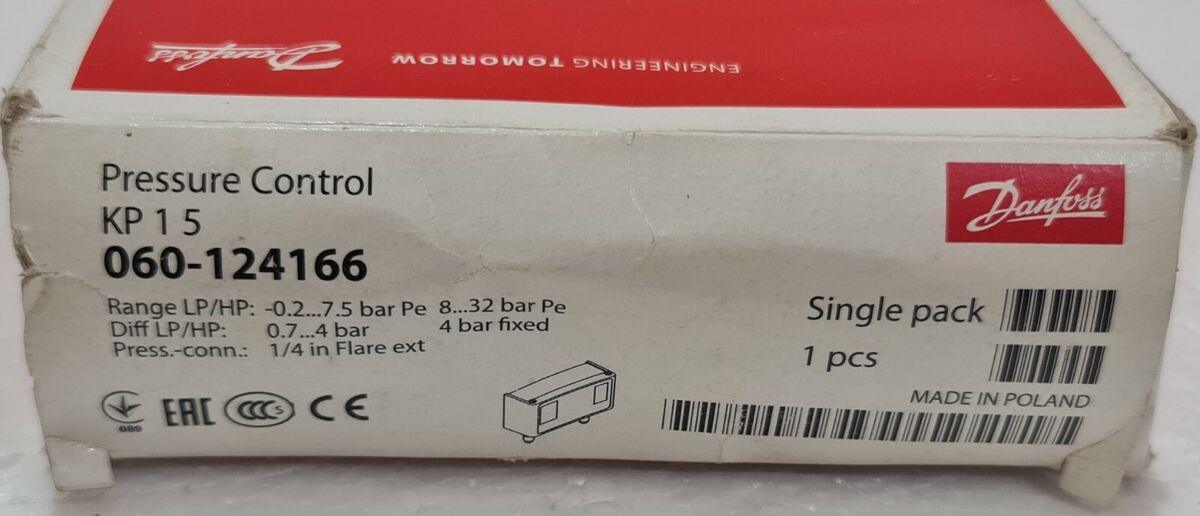

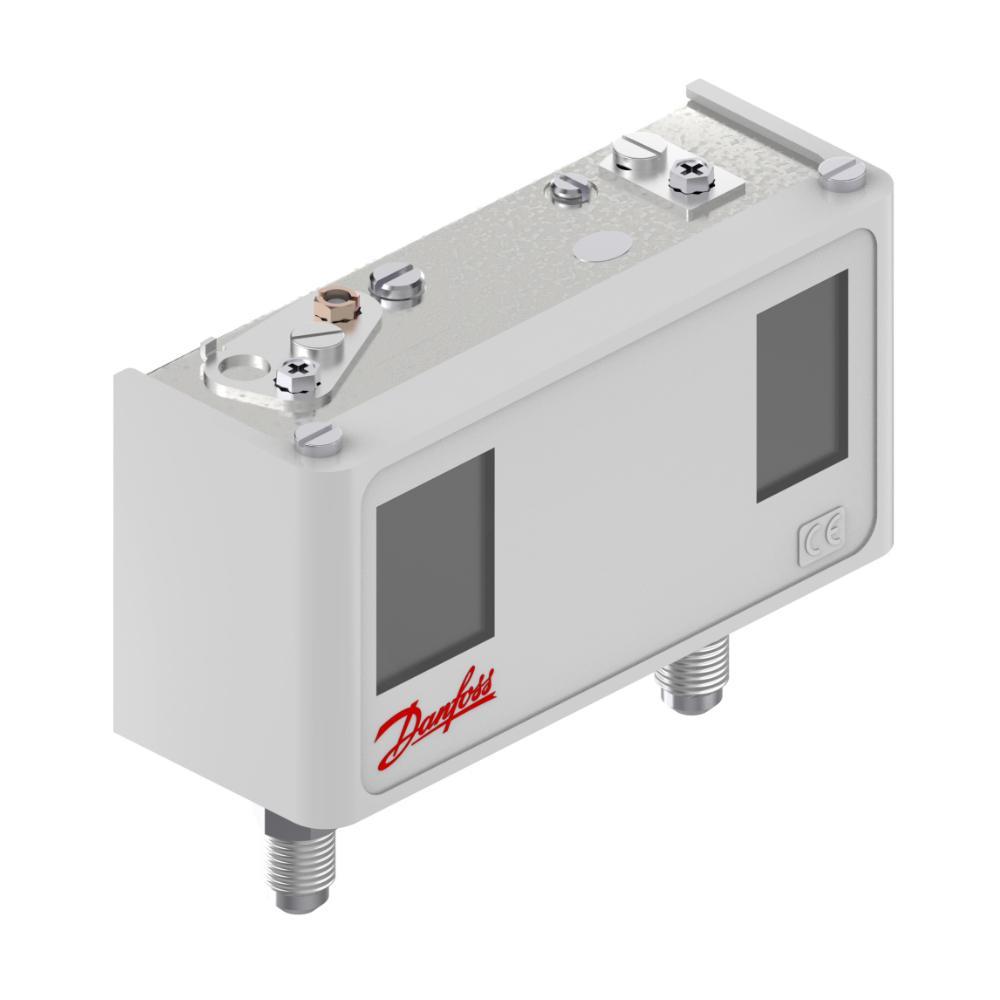

Danfoss Dual Pressure Control Auto/Auto Model:KP15(060-124166) Pressure switch, dual KP15 Danfoss, 060-124166, connection flanges 1/4 inch SAE. Differential 0.7 to 4 bar, control high pressure 8 to 32 bar, differential 4 bar. Contact SPDT, control range from 0.2 to 7.5 bar A Danfoss Dual Pressure Control Auto/Auto. Is a refrigeration safety device that simultaneously monitors and controls both high and low pressure in a system. With both the low and high pressure switches set to automatically reset. This type of control is used in commercial refrigeration and HVAC systems to protect the equipment from overpressure or underpressure. Situations, with the “Auto/Auto” designation indicating that both pressure sides have an automatic reset function. Dual pressure control. Monitors and controls both the high and low pressure sides of a refrigeration system with a single unit. Auto/Auto reset: Both the high-pressure and low-pressure switches are configured for automatic reset. This means the switch will automatically restart the system once the pressure returns ta safe operating level after being tripped. Safety and efficiency: Provides protection by shutting down the system if pressure becomes too high or too low. Helping to prevent equipment damage and ensure efficient operation. Danfos Dual Pressure Control AUTO/AUTO 8-32 Bar Pressure switches SKU: KP15 (060-124166) Categories: Fridge/Cold room accessories, Pressure Switches - Danfoss
