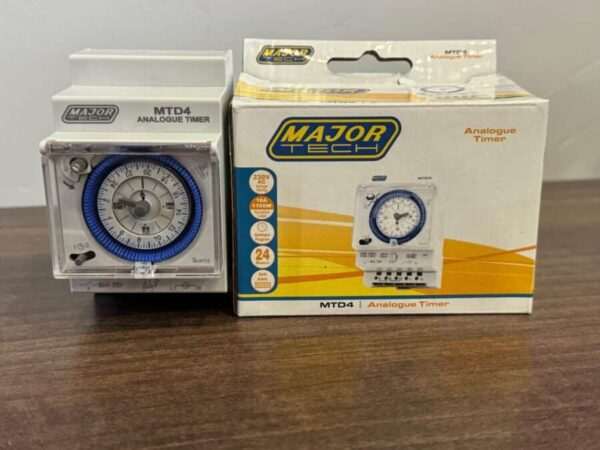

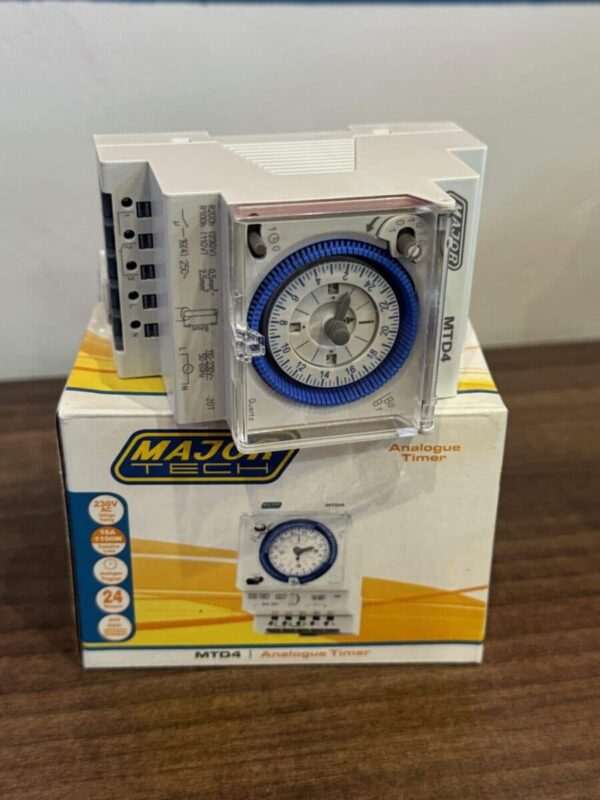

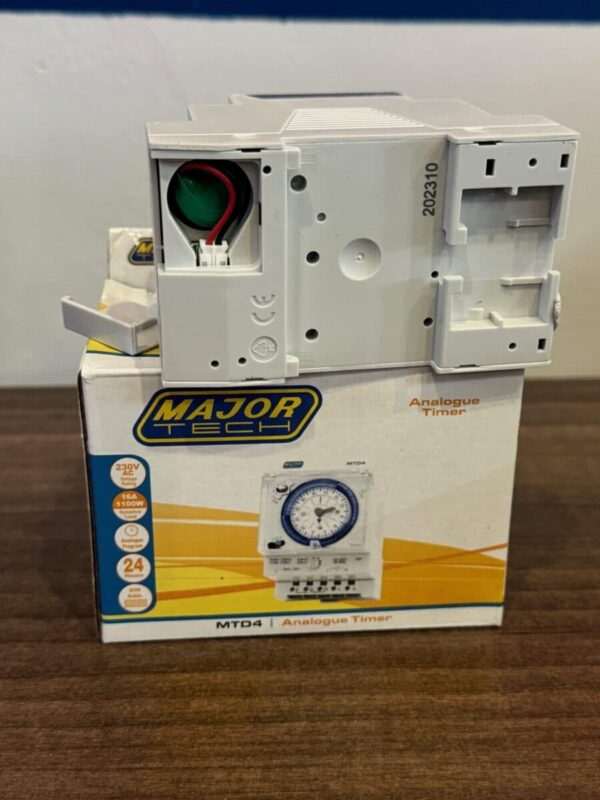

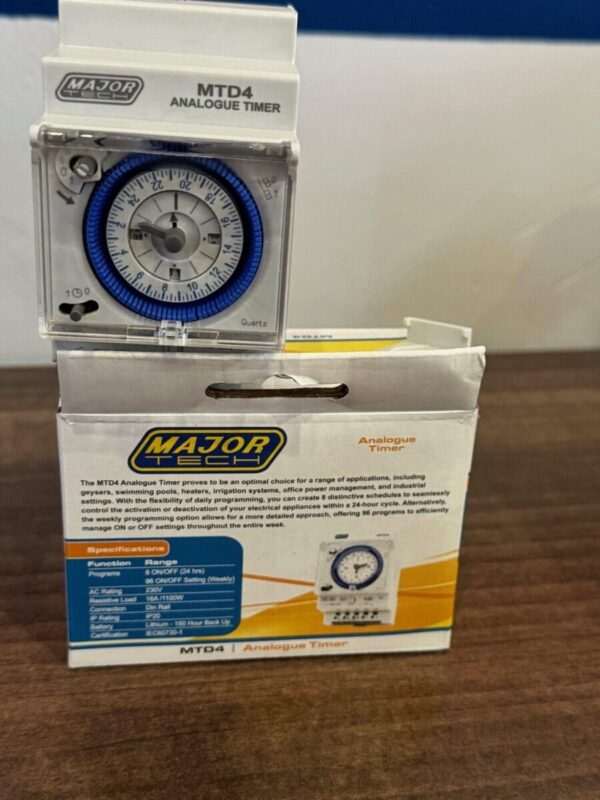

Major tech Analogue timer The MTD4 Analogue timer is ideal for geysers , swimming pools, heaters, irrigation , office power , home or industrial. Also works great on cold rooms and freezer rooms. The timer can be set daily with 8 ON/OFF programs to control appliances in 24 hours or set weekly. With 96 programs to control ON or OFF in one weeks. the timer also comes with a back up batter with a very long life. Major tech Analogue timer Set the current time: Rotate the dial with the arrow to the current time. Use the hand to adjust hours and minutes by turning it clockwise or counter-clockwise. Set ON/OFF periods: Push up the pins for the time periods you want the connected device to be OFF. Pull down the pins for the time periods you want the connected device to be ON. Since each pin represents 15 minutes, you will need to use at least two pins for each ON or OFF segment (e.g., for a full hour, you would use four pins). Set the switch mode: Use the switch on the timer (usually at the bottom left) to select the mode: AUTO: The timer operates based on the pins you have set. PERM ON: The device will stay permanently ON. PERM OFF: The device will stay permanently OFF We have a full range of controllers and timers SKU: MTD4 Categories: Controllers/Timers, Electrical, Major Tech Meters, Sales Items
