R744 manifold gauge set
$34.7
$43.03

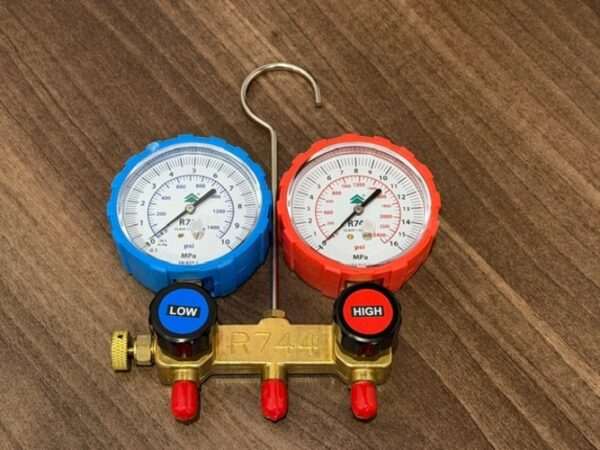

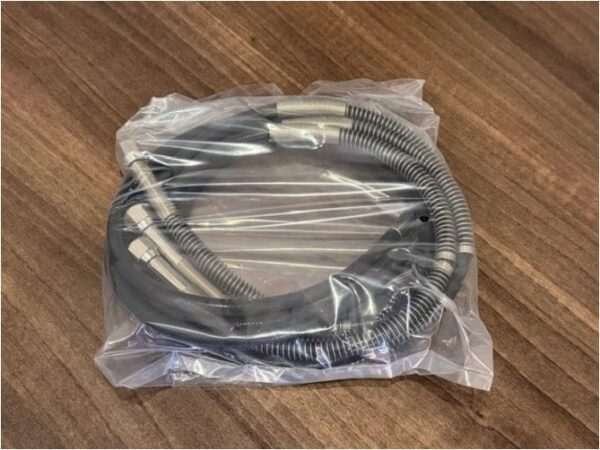

R744 manifold gauge set An R744 (CO₂) manifold gauge set is a high-pressure tool designed specifically for servicing, diagnosing and charging co2 Refrigeration and aircon systems. Featuring durable brass bodies and specialized high-pressure hoses, they are used to handle the extreme pressures (up to 2900 PSI) of R744 Key uses and applications include: HVAC/R System Maintenance: Servicing CO₂ racks, commercial refrigeration, and heat pumps. Automotive AC Repair: Specifically for luxury vehicles using high-pressure CO₂ systems (e.g., Mercedes-Benz, Maybach). Pressure Testing and Charging: The gauges are designed to accurately measure both high and low sides in systems Key Features: High Pressure Resistance: Equipped with steel-braided hoses and specialized gauges (often 0–1400 PSI low side, 0–2400 PSI high side) Safety: Built with robust materials to withstand the high-pressure nature of CO2 SPECIFICATIONS: Gauge Class: 1.0 Diameter: 70 mm Units: PSI/MPa Refrigerant Label: R744 STEEL BRAIDED HOSES FOR CO2 Section: PTFE Tube: 7 mm x 5 mm / Sandwich: 0.5 mm Outside Diameter 9 mm Thread 7/16-20UNF Working Pressure 200 BAR Burst 800 BAR manifold gauges SKU: GAUHS-B60-R744f-A-QC Categories: Manifold and Accessories, Tools and Multi Meters
