Compressor Starter Box 0-3 horse power

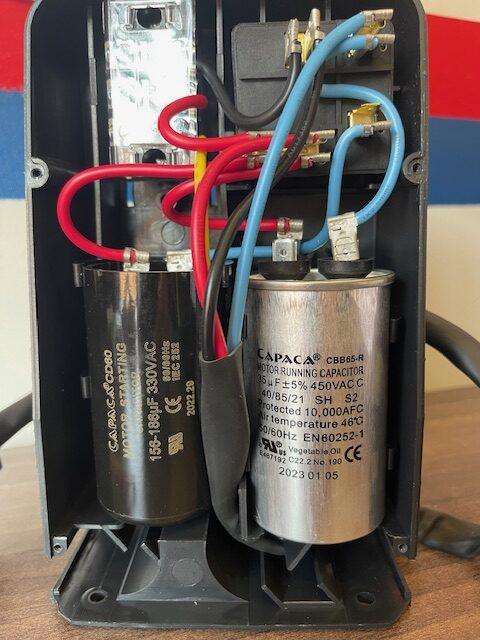

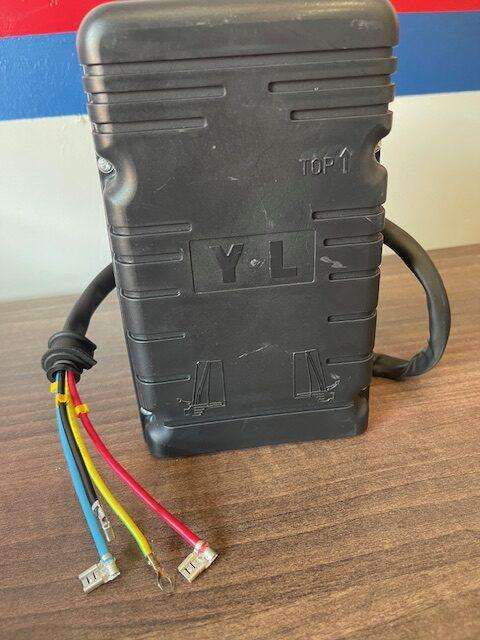

Compressor Starter Box 0-3 horse power Easy start single phase compressor 1 ph 220v. Cold room , freezer room and commercial fridges. can start compressor from 0.5 horse power to 3 horse power . starting box. this box is  a universal part does not matter the brand. The primary function of the starter box is to provide high starting torque and then disconnect the start-up components once the motor reaches its operational speed. Single-phase motors, like those found in refrigeration compressors, require assistance to get running, which is provided by a start winding and often a start capacitor, managed by a relay mechanism Start Relay: An electrical switch (which may be a solid-state PTC device or a current-activated relay) that connects the start winding and capacitor during startup and disconnects them when the motor is running. Start Capacitor: A component that creates a phase shift in the current, generating the strong starting torque needed to get the compressor motor spinning. Overload Protector: A safety device that monitors the compressor’s current and temperature, interrupting power if they become too high to prevent damage Compressor accessories    SKU: start Categories: Compressor Accessories, Compressors, Starter box
